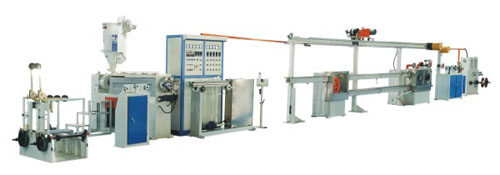

通用型PVC 、UL电子线、数据线、耳机线、PE、电话线等挤出生产线
General PVC、UL、data cable, headphone cable, PE, telephone linesextrusion production lines
功能：适用于PVC、LDPE、XLPE、LSHF、NYLON、TPU等绝缘材料的电线单层、双层、三层挤出用。
Application: suitable for single-layer, doublecolor, double layer and three-layer extrusion together of wire & cable with such insulated materials PVC、LDPE、XLPE、LSHF、NYLON、TPU.
|
机械型号 machine type |
SW-35 |
SW-50 |
SW-60 |
SW-70 |
SW-80 |
SW-90 |
SW-100 |
SW-120 |
|
放线方式 pay off mode |
动力给线 Pay off power |
双轴日式 Japanese type |
双轴日式 Japanese type |
双轴日式 Japanese type |
双轴日式 Japanese type |
双轴日式 Japanese type |
无轴式放线 None spindle pay off |
无轴放线 None spindle pay off |
|
放线线盘 pay off bobbin |
∮300-∮400 |
∮400-∮630 |
∮400-∮630 |
∮400-∮630 |
∮500-∮630 |
∮500-∮800 |
∮800-∮1000 |
∮800-∮1250 |
|
螺杆直径 screw diameter |
∮35 |
∮50 |
∮60 |
∮70 |
∮80 |
∮90 |
∮100 |
∮120 |
|
螺杆长径比screw length dia.ratio |
1/26 |
1/26 |
1/26 |
1/26 |
1/26 |
1/26 |
1/26 |
1/26 |
|
温控段 temperature control |
6 |
6 |
6 |
7 |
7 |
8 |
8 |
10 |
|
押出量extrusion capacity |
50kg/h |
90kg/h |
120kg/h |
150kg/h |
180kg/h |
250kg/h |
300kg/h |
400kg/h |
|
主机功率 main unit power |
10hp |
15hp |
25hp |
30hp |
40hp |
50hp |
75hp |
100hp |
|
风扇段数 fan section |
2段 |
3段 |
3段 |
4段 |
4段 |
5段 |
6段 |
7段 |
|
储线长度 wire storage length |
250m |
250m |
250m |
250m |
250m |
250m |
300m |
300m |
|
引取功率 capstan power |
3hp |
3hp |
5hp |
5hp |
7.5hp |
7.5hp |
10hp |
10hp |
|
收线功率 take up power |
3hp |
3hp |
5hp |
5hp |
7.5hp |
7.5hp |
10hp |
10hp或者15hp |
|
收线形式take up mode |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
双轴收线 Double bobbin take up |
|
收线速度 take up speed |
600m/min |
Max.500m/min |
Max.500m/min |
500m/min |
400m/min |
400m/min |
250m/min |
200m/min |
